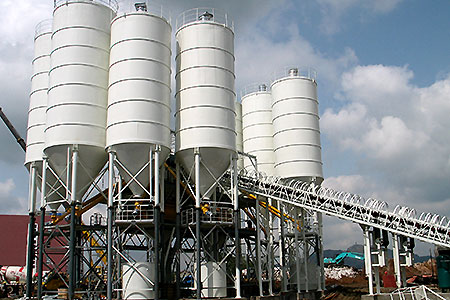

Belt conveyor type concrete batching plant

HZS series concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the commercial concrete which is used to produce plastic concrete, dry concrete and so on.


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

Belt conveyor type concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the commercial concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories which produce the pre-fabricated concrete component.

This series batching plant is equipped with a JS series double horizontal shafts forced mixer which is easy to be operated and maintained, with shorter mixing time, longer life time of tear and wear parts. Its final product of concrete is very good. It is newly designed with the control system of electronic weighing, computer controlled, digital display etc. The electronic weighing system is equipped with damping device, automatic compensation and precise measuring. The transportation system for aggregate adopts the specially designed belt conveyor and sidewalk and platform for repair. So it is the ideal choice to make the high quality concrete.

Performance:

1. With belt conveyor to feed the mixer, work stably and continuously;
2. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.
3. Excellent environmental protection, dust collection system and anti-noise design.
4. Accurate weighing system (aggregate, cement, water, additive).
5. PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production.

Specification:

Technical data Model
HZS60 HZN60 HZS90 HZN90 HZS120 HZS180(150) HZS240(200)
Theoretical capacity(m³/h) 60 60 90 90 120 180(150) 240(200)
Mixer model JS1000 MP1000 JS1500 MP1500 JS2000 JS3000 JS4000
Batching system PLD1600 PLD1800 PLD2400 PLD2400 PLD3200 PLD4800 PLD6400
Discharging height (mm) 4100 4840 4100 4100 4100 4100 4100
Maximum aggregates size(mm) 60(80) 60(80) 60(80) 60(80) 60(80) 60(80) 60(80)
automatic Cycle time(s) 60 60 60 60 60 60(72) 60(72)
Weighing Precision of Aggregate ±2% ±2% ±2% ±2% ±2% ±2% ±2%
Weighing Precision of Cement ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Weighing Precision of Water ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Weighing Precision of Additive ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Total power(KW) 106 114 145 145 175 215 295

Note: Any change of technical data shall not be advised additionally.
