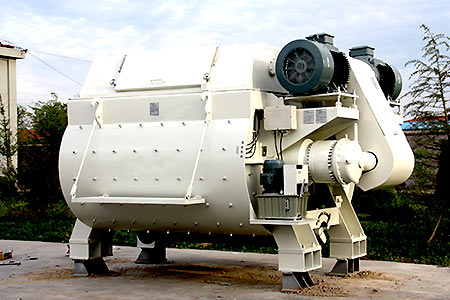

European Tech.Twin shaft Concrete Mixer

HTS series concrete mixer absorbs the European advanced technology and has unique performance of European mixer. It is a good plant to instead the exported same type mixers.


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

HTS series concrete mixer absorbs the European advanced technology and has unique performance of European mixer. It is a good plant to instead the exported same type mixers.

Performance:

1. The structure of the mixer is designed compactly, and all parts are fixed on the mixing tank, which can save space and be installed and replaced easily;
2. Combined double floating seal and unique seal with high pressure grease, this configuration can expand useful life;
3. The mixing arm is streamline in axial and in radial direction which ensures fast mixing speed and can reach to the homogeneity quickly. Meanwhile, the unique designed structure can improve the utilization rate of cement;
4. Scaled board and paddle are made of manganese steel, which extends the useful life greatly;
5. High pressure cleaning device, consistence probe are optional.

Specification:

Model HTS1500/1000 HTS2250/1500 HTS3000/2000 HTS4500/3000 HTS6000/4000
Feeding volume (L) 1500 2250 3000 4500 6000
Compacted concrete. Per batch (L) 1000 1500 2000 3000 4000
Power (kw) 37 2x30 2x37 2x55 2x75
Weight(kg) 5500 6500 7600 9800 13000
