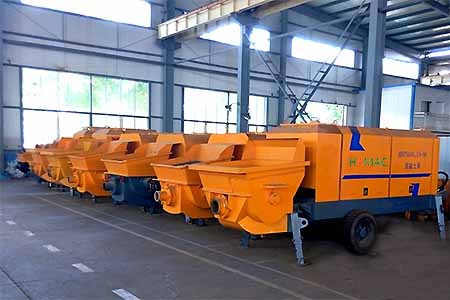

Small and Medium Concrete Pump

Small and medium concrete pump adopt world-level advanced technologies such as open hydraulic loop, distributing valve auto-compensation clearance, constant power control, all-hydraulic automatic reverse and electric proportional control.The motor concrete pump set high reliability, economy, safety a


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

Small and medium concrete pump, using advanced technology of concrete pump in the world, it is the first advanced floor heating construction equipment in domestic and suitable for construction of large area, high efficiency in pea gravel concrete packing layer or mortar packing layer of floor heating engineering. Adopting international famous brand spare parts, reasonable design and high stability, greatly improving working efficiency and reducing labor intensity. This product sell to major cities nationwide and get good market response, win the high praise of our customers. Selling first in domestic for three consecutive years.

Performance:

1. Distribution valve adopts the advanced S pipe value system,with good sealing performance,simple and reliable structure,and easy replacement of wearing parts;
2. S pipe is equipped with floated wearing ring, compensating attrition automaticly, good tightness.
3. The counterforce on specially designed “S” valve is received by hopper wall to assure the service life of goggle plate and cutting ring.
4. Outlet pressure is high, which satisfy the high building construction and long distance transmission requirements.
5. Hydraulic system adopts U return circuit, reversing is fast and efficient.
6. Hydraulic oil cooling adopts advanced air cooling system, it do not need connect water source and easy to use.
7. Reverse pumping function can facilitate cleaning the conveying pipe.
8. Automatic lubricant filling device can eliminate the trouble of manual filling and extend the service life of the parts with less abrasion in the lubricants.
9. Most electrical appliance components of electrical system are imported, and PLC for control system,with reliable working,strong adaptability,and wired remote control;
10.Electric case is equipped with wired remote control handle.

Specification:

Item Unit Electromotor series Diesel series
HBT40 HBT50 DHBT40 DHBT50
Theoretic concrete delivery volume M3/h 40 50 40 50
Theoretic concrete delivery pressure Mpa 10 12 10 12
Hydraulic pressure Mpa. 25 28 25 28
The type of distribution valve - S tube valve
Electromotor(diesel)power Kw 45 55 56 56
electromotor(diesel) rated speed r/min 1480 1480 2200 2200
Main oil pump - Japanese Kawasaki
Main cylinder di./pole dia. Stroke mm φ100/70×1000 φ125/80×1200 φ100/70×1000 φ125/80×1200
Diameter of delivery cylinder mm φ600×1000 φ200×1200 φ160×1000 φ200×1200
Capacity of hyfrulic oil tank L 200 240 200 240
Hopper capacity L 450 600 450 600
Overall weight Kg 3200 3500 3400 3700
Dimension(L×W×H) mm 4970×1680×1800 5270×2000×1840 4970×1680×2580 5270×2000×2620
Max. delivery distance Vertical m 120 150 120 150
Horizontal m 300 350 300 350
