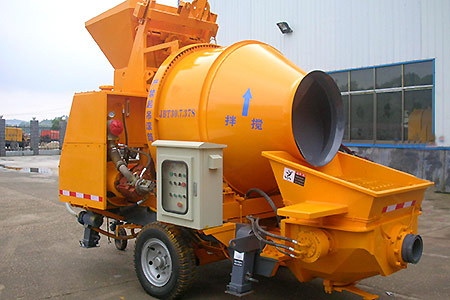

Concrete Mixer with Pump

According to the actual construction requirement in the rural districts, small and medium towns, and various construction projects, our company researched and developed this new versatile equipment “concrete mixer with pump” combined with concrete mixing system and concrete delivering sys


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

According to the actual construction requirement in the rural districts, small and medium towns, and various construction projects, our company researched and developed this new versatile equipment “concrete mixer with pump” combined with concrete mixing system and concrete delivering system. It is more convenient for the customers.

Performance:

1. Mixing system: double motors for mixers mixing with features of quick and homogeneous mixing; brush wheels for mixing drum rotation, stable and reliable; vibration device for concrete discharging clean and clear;
2. Pumping system: Fully hydraulic pumping system with double cylinders, stable and reliable;

Specification:

Item JBT25-7-30 JBT30-8-37
PUPING  SYSTEM Theoretic capacity（m³/h） 25 30
pressure (Mpa) 1 8
Theoretic delivery height(m) 110 130
Theoretic delivery distance(m) 280 320
Pumping frequency (times/min) 15 17
Distribution valve type S pine valve S pine valve
Delivering cylinder size (inner dia.*
stroke) (mm)		 Ф180*1000 Ф180*1000
Main oil cylinder size (outer dia.*inner dia.* stroke) (mm) Ф100*Ф70*1000 Ф100*Ф70*1000
Outlet diameter (mm) Ф150 Ф150
Inner dia. Of delivering pipe(mm) Ф125 Ф125
Hopper volume (L) 450 450
Rated voltage(V) ~380 ~380
Power of main motor (Kw) 30 37
Power of vibrating motor (Kw) 0.04 0.04
hydraulic oil circuit type Open Open
Max. oil pressure of main system (Mpa) 22 22
  12 12
Mixing system max. oil pressure(Mpa) 9 9
Max. mixing speed(r/min) 24 24
Volume of hydraulic oil tank(L) 120 120
Max. aggregate size(mm) ≤30 ≤30
Concrete slum scope(mm) 80～200 ～200
Overall dimension（L×W×H）(mm) 4370*2340*2970 4370*2340*2970
Weight (Kg) 3300 3500
Mixing system Mixing volume per time(m³/time) 0.4 0.5
Total mixing capacity（m³/h） 16 20
Power of mixing motor (Kw) 3 ×2=6 5.5x2=11
Power of lifting motor (Kw) 4 5.5
Power of water pump (Kw) 0.55 0.75
Power of vibrating motor (Kw) 0.55 0.75

Note: Any change of technical data should not advise additionally.
