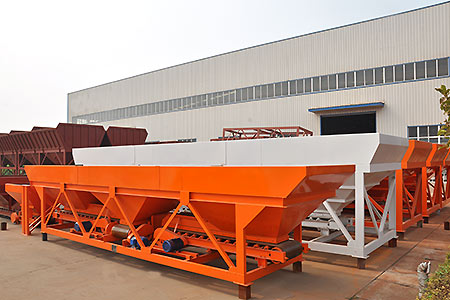

PLD Concrete Batching Machine

PLD series concrete batching machine is automatic batching equipment supporting a mixer. It can automatically complete the ratio of sand, stone, cement and other kinds of materials 3-6 (secondary aggregate grading concrete) ingredients procedures designed according to user's concrete.


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

PLD series concrete batching machine is automatic batching equipment supporting a mixer. It can automatically complete the ratio of sand, stone, cement and other kinds of materials 3-6 (secondary aggregate grading concrete) ingredients procedures designed according to user's concrete. The series is in accordance with the GB10172 <concrete mixing station technology> technical standards batching system design. The machine uses electronic weighing, computer control, digital display, wired remote control operation, with weighing accuracy, high dosing precision, speed, control, and other advantages, it is easy to press a button each time simply.

Performance:

1. High precision electric weighing, PC+PLC control;
2. Digital display on the screen, Reasonable layout,
3. Compact structure, Easy operation,
4. Reliable performance.

Specification:

Model PLD800 PLD1200 PLD1600 PLD2400 PLD3200 PLD4800
Cubage of storage hopper 2m3 2.2m3 3.7m3 12m3 20m3 25m3
Cubage of weighing hopper 0.8m3 1.2m3 1.6m3 2.4m3 3.2m3 4.8m3
Output rate 48m3/h 60m3/h 80m3/h 120m3/h 160m3/h 280m3/h
Accuracy of batching ±2% ±2% ±2% ±2% ±2% ±2%
Max weighing value 1500Kg 2000Kg 3000Kg 4000Kg 5000Kg 8000Kg
Aggregate types
for batching
2-3 2-4 2-4 3-4 3-4 4
Feeding height 3000mm 3000mm 3000mm 3200mm 3500mm 3800mm
Speed of belt conveyor 1.25m/s 1.25m/s 1.25m/s 1.0m/s 1.0m/s 1.6m/s
Power (2-3)x3Kw (2-4)x3Kw (2-4)x3Kw 11Kw 11Kw 15Kw
Overall weight 2500Kg 2900-3900-4900Kg 3500-4750-5750Kg 8500-10500Kg 10200-12600Kg 13600Kg
Overall dimension 3200x1600
x3000
3200x2000
x3200
3200x2000
x3200
3250x2840
x3900
3380x2900
x4450
4500x3900
x4820
