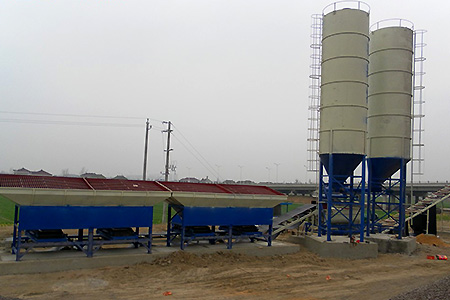

Modular Full-weighing stabilized soil Mixing station

Module stabilized soil mixing plant material has a strong adaptability, grading variety, good reliability, easy operation, compact structure, reasonable layout. Widely used in highway, railway, municipal engineering, airport construction and other applications require subbase materials.


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

Module stabilized soil mixing plant material has a strong adaptability, grading variety, good reliability, easy operation, compact structure, reasonable layout. Widely used in highway, railway, municipal engineering, airport construction and other applications require subbase materials.

Performance:

1. easily disassembled and assembled, save time;
2. operate easily, maintain conveniently;
3. higher capacity and efficiency;
4. matching ratio accurate, mixing uniformly; weighing automatic;

Specification:

Model MWCB300 MWCB400 MWCB500 MWCB600
Type twin-shaft compulsory mixer
Capacity (t/h) 300 400 500 600
The aggregate silo volume m3 3×12 4×12 4×12 4×15
Max. aggregate size(mm) ≤60
Accuracy of batching (%) Aggregate ±2、cement ±1、water ±1
Feeding height (m) 3.9 4.1 4.1 4.5
Discharging height (m) 3.5 3.5 3.5 3.8
The speed of mixer 632r/min 632r/min 632r/min 632r/min
Total power (kw) 95 105 120 140
1. Total power does not include the screw conveyor.
2. The quantity and volume of hopper can be designed according to customers’ request;
3. Any change of technical data should not be advised additionally;
