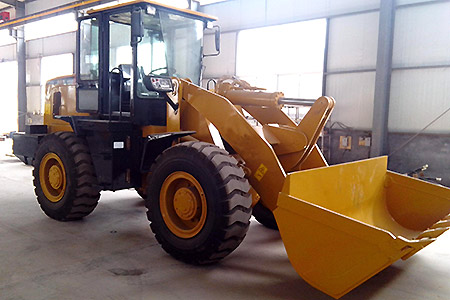

Wheel Loader

Wheel loader, which belong to series of engineering machinery, were designed and developed by our company and professional institutes and colleges, we referenced and absorbed structure characteristics and advanced technology from foreign and domestic machinery according to the concrete demand of cust


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

Wheel loader, which belong to series of engineering machinery, were designed and developed by our company and professional institutes and colleges, we referenced and absorbed structure characteristics and advanced technology from foreign and domestic machinery according to the concrete demand of customers.

Performance:

1. Powerful engine that saves labor and energy.
2. Load sensing hydraulic steering gear and central articulated frame.
3. Single pipe type hydraulic 4-wheel brake.
4. High-quality tire operating a long time in various environment.
5. High degree of safety for the cab, large space.

Specification:

Model ZL-18 ZL-20 ZL-30 ZL-32
Max dumping height 2700mm 3200mm 3250mm 3250mm
Max dumping distance 760mm 1100mm 1200mm 1200mm
Rate Weight(kg) 1800 2000 3000 3000
Bucket capacity(m3) 0.5-0.6 1.03 1.7 1.3
Distance between axles 2000mm 2140mm 2760mm 2760mm
Tread 1400mm 1480mm 1800mm 1800mm
Overall dimensions(L*W*H) 5100*1720*2700 5850*2550*2700 5100*1720*2700 6450*2090*2930
Engine model LION LN490KC WEICHAI4102 DEUTZ TD 4108
Rated power 39KW 47KW 135KW 83KW
Working pressure 16Mpa   27.5Mpa 27.5Mpa
Max flux 50ml/r   100ml/r 100ml/r
Total weight 3000kg   9500kg 6000kg
Grade ability 25%   25% 25%
Min rotary radius   4600mm 5700mm 5700mm
Time 7s 9s 11s 11s
Max walking speed 24km/h 24km/h 40km/h 40km/h
Max. breakout force 23kn 32kn 138kn 138kn
